KyotoTech Logger

Introduction

KyotoTech Logger is a cloud logging platform for .NET applications. It consists of:

• NuGet SDK — A lightweight .NET library that you integrate into your application
• Web Dashboard — A browser-based interface for viewing, searching, and managing logs
• REST API — HTTP endpoints for log ingestion and management

Key Features

• One-liner initialization
• 150+ log categories (ErrorLog, SecurityLog, DatabaseLog, etc.)
• Automatic remote upload with offline fallback
• Custom metadata on every log entry
• Zero external dependencies (everything embedded in one DLL)
• Cross-platform: Windows, macOS, Linux, iOS, Android
• Supports Console, ASP.NET Core, MAUI, WPF, WinForms, Blazor

System Requirements

Requirement	Minimum
.NET Version	.NET 8.0 or higher
OS	Windows 10+, macOS 12+, Linux (x64/arm64), iOS 16+, Android 10+

Getting Started

Step 1: Create an Account

1. Go to logger.kyototech.co.jp and register
2. You will receive an Organization with a Free plan

Step 2: Create a Project

1. Log in to the Dashboard

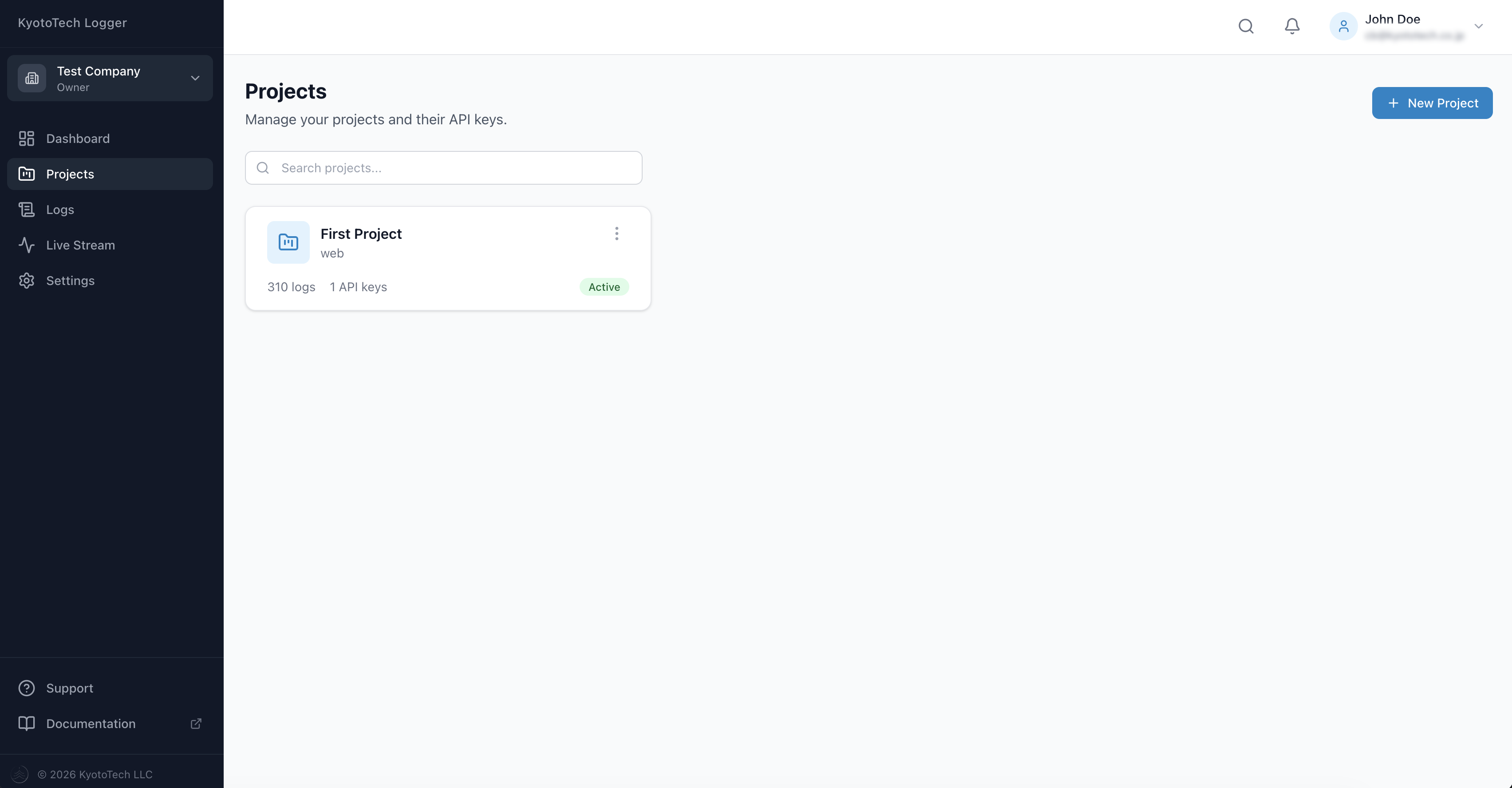

2. Go to Projects and click Create Project
3. Enter a project name, choose a color and platform type

Step 3: Create an API Key

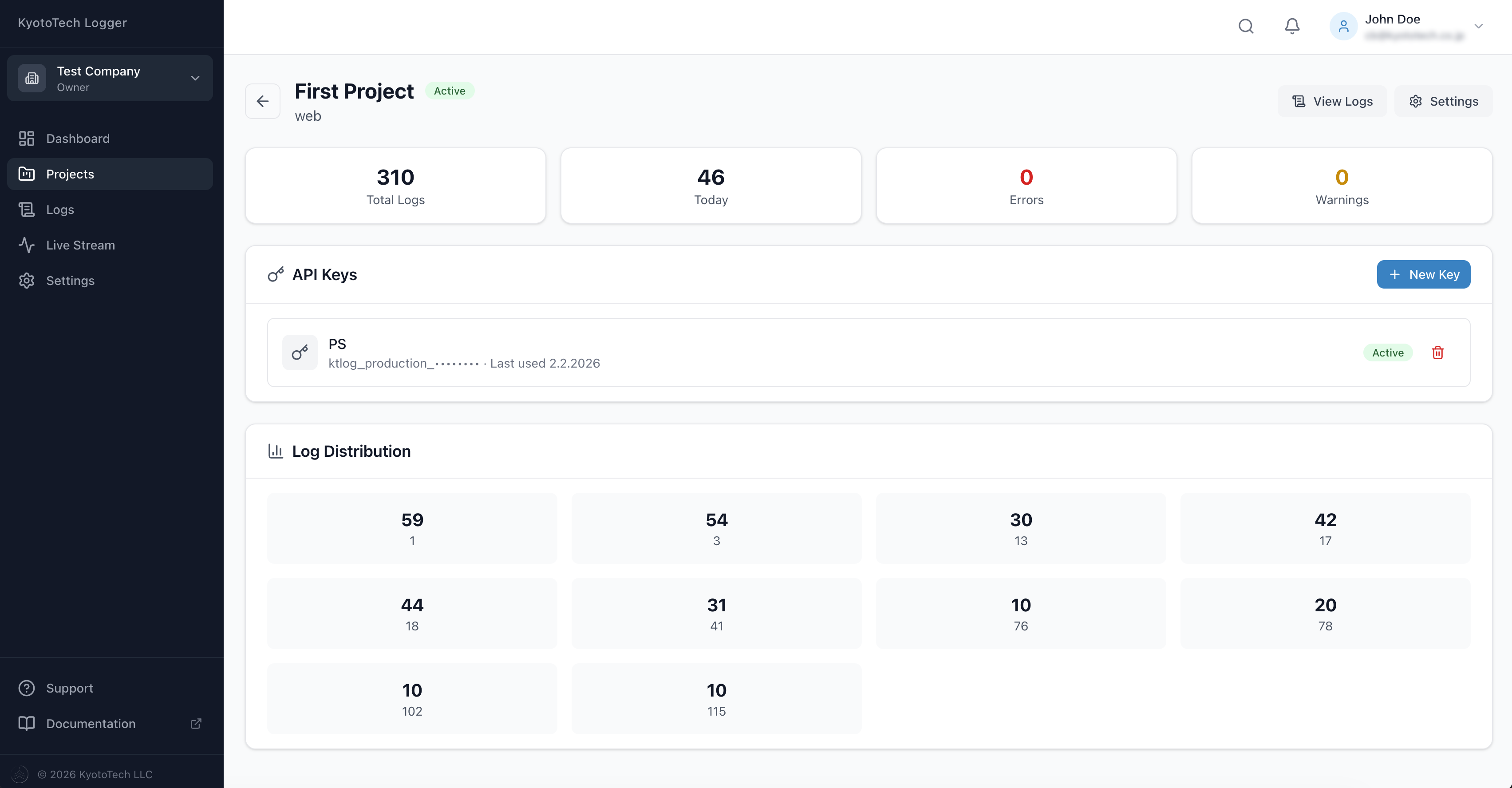

1. Open your project settings
2. Under API Keys, click Generate New Key
3. Choose a name and environment (production, staging, development)
4. Copy the key immediately — it is only shown once
5. API Key format: ktlog_production_a1b2c3d4...

Step 4: Install the NuGet Package

dotnet add package KyotoTechLogger

Or via Package Manager Console:

Install-Package KyotoTechLogger

Or in your .csproj:

<PackageReference Include="KyotoTechLogger" Version="1.2.2" />

Step 5: Initialize and Log

using KyotoTechLogger;
using KyotoTechLogger.Models;
using System.Reflection;

// Initialize (once at app startup)
var result = LogService.Initialize(
    licenseKey: "YOUR-LICENSE-KEY",
    apiKey: "ktlog_production_your_key_here",
    serverUrl: "https://logger.kyototech.co.jp/api/v1/logs");

if (!result.Success)
{
    Console.WriteLine($"Init failed: {result.ErrorMessage}");
    return;
}

// Log a message
LogService.Instance.Log(
    MethodBase.GetCurrentMethod(),
    "Application started",
    LogTypes.LifecycleLog);

// Upload logs to the dashboard
await LogService.Instance.UploadLogsAsync();

NuGet SDK Reference

Initialization

All initialization requires three parameters: licenseKey, apiKey, serverUrl.

// Synchronous (Console, WPF, WinForms)
var result = LogService.Initialize(licenseKey, apiKey, serverUrl);
var result = LogService.Initialize(licenseKey, apiKey, serverUrl, options => { ... });

// Asynchronous (ASP.NET Core, MAUI)
var result = await LogService.InitializeAsync(licenseKey, apiKey, serverUrl);

// From license file (offline activation)
var result = LogService.InitializeWithFile(licensePath, apiKey, serverUrl);
var result = await LogService.InitializeWithFileAsync(licensePath, apiKey, serverUrl);

The InitializationResult tells you whether it succeeded:

Property	Type	Description
Success	bool	Whether initialization succeeded
Message	string?	Status message
ErrorMessage	string?	Error details if failed
LicenseInfo	LicenseInfo?	License details

Configuration Options

Pass an options callback to configure behavior:

var result = LogService.Initialize(licenseKey, apiKey, serverUrl, opts =>
{
    opts.ShowConsole = true;          // Print logs to console
    opts.ShowConsoleDebug = true;     // Print to debug output
    opts.TimeoutSeconds = 15;         // HTTP timeout for uploads
    opts.MaxLogAgeDays = 30;          // Local log retention
    opts.RemoteLogTypes = new List<LogTypes>  // Only upload these types
    {
        LogTypes.ErrorLog,
        LogTypes.CrashLog,
        LogTypes.SecurityLog
    };
});

Option	Type	Default	Description
ShowConsole	bool	false	Print logs to console output
ShowConsoleDebug	bool	false	Print to debug output
TimeoutSeconds	int	30	HTTP timeout in seconds
MaxLogAgeDays	int	30	Local file retention in days
RemoteLogTypes	List<LogTypes>?	null (all)	Which log types to upload. null = all

Logging Methods

After initialization, use LogService.Instance to log:

// Log a message
LogService.Instance.Log(
    MethodBase.GetCurrentMethod(),
    "User logged in successfully",
    LogTypes.AuthLog);

// Log an exception
LogService.Instance.Log(
    MethodBase.GetCurrentMethod(),
    ex,
    LogTypes.ErrorLog);

// Log with custom metadata (v1.2.0+)
LogService.Instance.Log(
    MethodBase.GetCurrentMethod(),
    "Order processed",
    LogTypes.BusinessLog,
    new Dictionary<string, object>
    {
        ["orderId"] = "ORD-12345",
        ["amount"] = 99.99,
        ["currency"] = "USD",
        ["items"] = new[] { "SKU-001", "SKU-002" }
    });

// Log an exception with metadata
LogService.Instance.Log(
    MethodBase.GetCurrentMethod(),
    ex,
    LogTypes.ErrorLog,
    new Dictionary<string, object>
    {
        ["userId"] = currentUserId,
        ["endpoint"] = "/api/orders"
    });

Parameters

Parameter	Type	Description
method	MethodBase?	Use MethodBase.GetCurrentMethod() for automatic caller info
message	string	The log message
exception	Exception	The exception object (message + stack trace captured)
logType	LogTypes	Category of the log entry
metadata	Dictionary<string, object>?	Optional custom key-value data

Uploading Logs

Logs are stored locally and uploaded on demand:

// Upload all pending logs
var uploadResult = await LogService.Instance.UploadLogsAsync();

// Upload specific log types only
await LogService.Instance.UploadLogsAsync(new List<LogTypes>
{
    LogTypes.ErrorLog,
    LogTypes.CrashLog
});

// Upload previously failed logs (backup files)
await LogService.Instance.UploadBackupFilesAsync();

// Clean up old local log files
await LogService.Instance.RemoveAllOldLogFilesAsync();

The UploadResult provides details:

Property	Type	Description
IsSuccess	bool	Whether the upload succeeded
Message	string?	Status message
ErrorMessage	string?	Error details if failed
TotalLogsUploaded	int	Number of logs sent

Runtime Configuration

You can change settings after initialization:

LogService.Instance.SetApiKey("ktlog_production_new_key");
LogService.Instance.ToggleShowConsole(true);
LogService.Instance.SetRemoteLogTypesAllowToSend(new List<LogTypes> { LogTypes.ErrorLog });
LogService.Instance.SetMaxLogsAge(14);
LogService.Instance.SetDefaultServerUrl("https://logger.kyototech.co.jp/api/v1/logs", 30);

License Information

var info = LogService.Instance.GetLicenseInfo();
Console.WriteLine($"Type: {info.LicenseType}");
Console.WriteLine($"Valid: {info.IsValid}");
Console.WriteLine($"Expires: {info.ExpirationDate?.ToString("yyyy-MM-dd") ?? "Never"}");
Console.WriteLine($"Max Logs/Day: {info.MaxLogsPerDay}");

Log Types

There are 150+ log types. Here are the most commonly used:

Type	Description
ErrorLog	Application errors
CrashLog	Crash reports
WarningLog	Warning messages
DeveloperLog	Developer/debug info
SecurityLog	Security events
AuthLog	Authentication events
PerformanceLog	Performance metrics
DatabaseLog	Database operations
NetworkMonitorLog	Network activity
RestLog	REST API calls
HttpLog	HTTP activity
CacheLog	Cache operations
UILog	User interface events
LifecycleLog	App lifecycle (start, stop)
FileLog	File operations
ConfigLog	Configuration changes
AuditLog	Audit trail
HealthCheckLog	Health check results
BusinessLog	Business logic events
NotificationLog	Notification events

Code Examples

Console Application

using System.Reflection;
using KyotoTechLogger;
using KyotoTechLogger.Models;

var result = LogService.Initialize(
    licenseKey: "STR-XXXX-XXXX-XXXX-XXXX",
    apiKey: "ktlog_production_your_key",
    serverUrl: "https://logger.kyototech.co.jp/api/v1/logs",
    options: opts => opts.ShowConsole = true);

if (!result.Success)
{
    Console.WriteLine($"Failed: {result.ErrorMessage}");
    return;
}

LogService.Instance.Log(
    MethodBase.GetCurrentMethod(),
    "Application started",
    LogTypes.LifecycleLog);

try
{
    // Your code here
}
catch (Exception ex)
{
    LogService.Instance.Log(
        MethodBase.GetCurrentMethod(),
        ex,
        LogTypes.ErrorLog);
}

await LogService.Instance.UploadLogsAsync();

ASP.NET Core

// Program.cs
using KyotoTechLogger;
using KyotoTechLogger.Models;

var builder = WebApplication.CreateBuilder(args);

var logResult = await LogService.InitializeAsync(
    licenseKey: "ENT-XXXX-XXXX-XXXX-XXXX",
    apiKey: "ktlog_production_your_key",
    serverUrl: "https://logger.kyototech.co.jp/api/v1/logs",
    options: opts =>
    {
        opts.TimeoutSeconds = 15;
        opts.RemoteLogTypes = new List<LogTypes>
        {
            LogTypes.ErrorLog,
            LogTypes.SecurityLog,
            LogTypes.AuthLog,
            LogTypes.PerformanceLog
        };
    });

var app = builder.Build();
app.Run();

.NET MAUI

// MauiProgram.cs
public static class MauiProgram
{
    public static MauiApp CreateMauiApp()
    {
        var builder = MauiApp.CreateBuilder();
        builder.UseMauiApp<App>();

        var result = LogService.Initialize(
            licenseKey: "DEV-XXXX-XXXX-XXXX-XXXX",
            apiKey: "ktlog_production_your_key",
            serverUrl: "https://logger.kyototech.co.jp/api/v1/logs",
            options: opts =>
            {
#if DEBUG
                opts.ShowConsole = true;
#endif
                opts.MaxLogAgeDays = 14;
                opts.RemoteLogTypes = new List<LogTypes>
                {
                    LogTypes.ErrorLog,
                    LogTypes.CrashLog
                };
            });

        return builder.Build();
    }
}

Background Upload Service

For applications that run continuously, set up periodic uploads:

public class LogUploadService : BackgroundService
{
    protected override async Task ExecuteAsync(CancellationToken stoppingToken)
    {
        while (!stoppingToken.IsCancellationRequested)
        {
            await LogService.Instance.UploadLogsAsync();
            await LogService.Instance.UploadBackupFilesAsync();
            await LogService.Instance.RemoveAllOldLogFilesAsync();
            await Task.Delay(TimeSpan.FromMinutes(5), stoppingToken);
        }
    }
}

Using Custom Metadata

Attach structured data to any log entry:

// E-commerce example
LogService.Instance.Log(
    MethodBase.GetCurrentMethod(),
    "Payment processed",
    LogTypes.BusinessLog,
    new Dictionary<string, object>
    {
        ["orderId"] = "ORD-2026-0001",
        ["amount"] = 149.99,
        ["currency"] = "USD",
        ["paymentMethod"] = "credit_card",
        ["customerId"] = "CUST-789"
    });

// Error with context
catch (Exception ex)
{
    LogService.Instance.Log(
        MethodBase.GetCurrentMethod(),
        ex,
        LogTypes.ErrorLog,
        new Dictionary<string, object>
        {
            ["userId"] = currentUser.Id,
            ["requestPath"] = context.Request.Path,
            ["requestMethod"] = context.Request.Method
        });
}

Metadata supports primitives, strings, arrays, and nested objects. It is displayed as structured data in the Dashboard.

Web Dashboard

The Dashboard is available at logger.kyototech.co.jp.

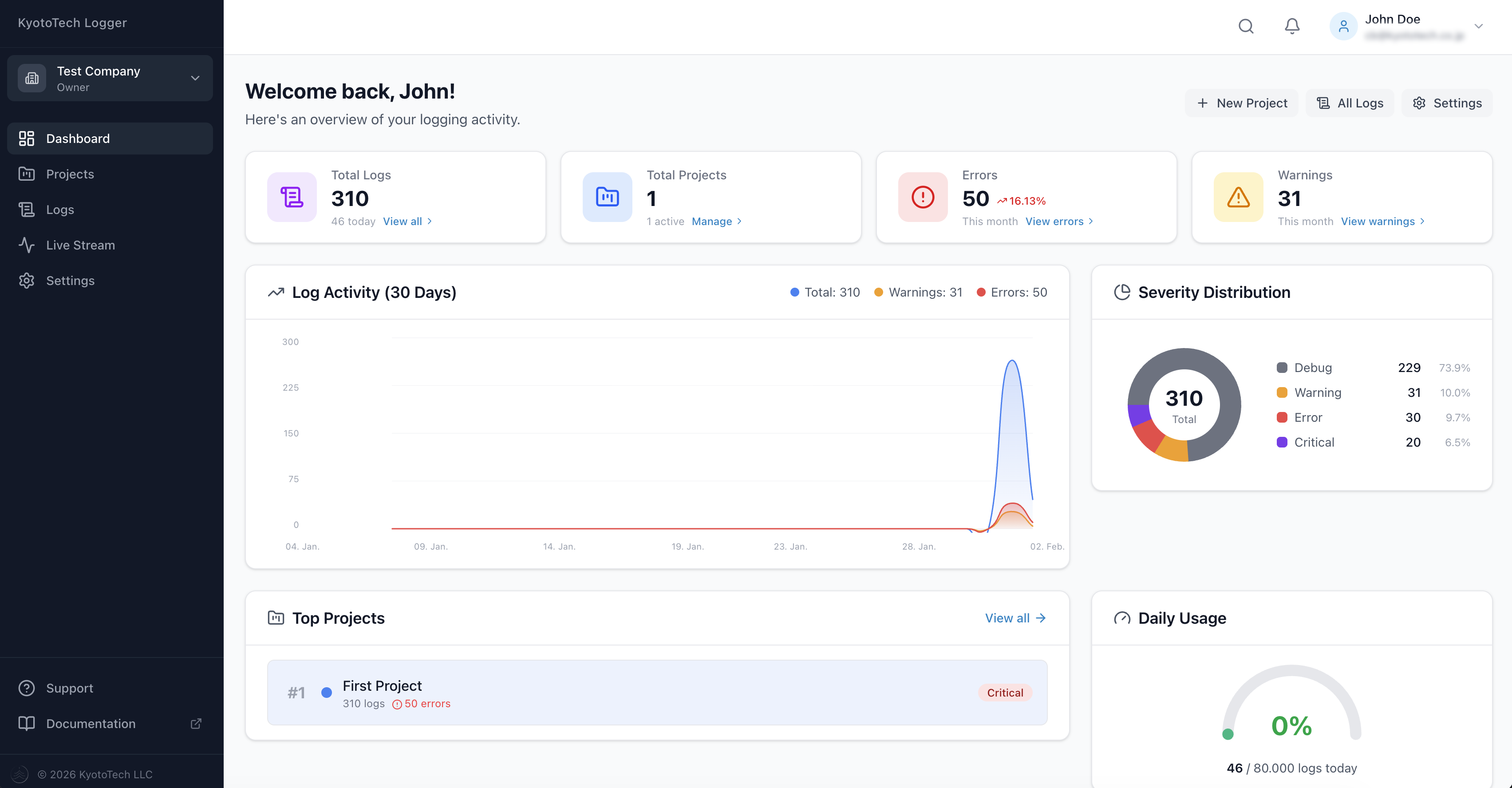

Dashboard Overview

The main dashboard shows:

• Log statistics — Total logs, today's count, errors, warnings
• Usage gauge — Daily log usage vs. your plan limit
• Trend chart — Log volume over time (7–90 days)
• Severity distribution — Breakdown by Debug, Info, Warning, Error, Critical
• Top projects — Your most active projects
• Recent errors — Latest error and critical logs

Log Viewer

The log viewer provides four display modes:

• Compact — One-line overview, ideal for scanning large volumes
• Standard — Balanced view with key information (default)
• Detailed — Full log entry with all fields expanded
• Split View — List on the left, details panel on the right

Searching & Filtering

• Free-text search — Search in messages, methods, exceptions, and timestamps
• Severity filter — Filter by Debug, Info, Warning, Error, Critical
• Project filter — Show logs from a specific project
• Date range — Filter by time period
• Saved filters — Create and save filter combinations for quick access

Log Details

Click any log entry to see:

• Full message text
• Method name
• Exception details and stack trace
• Device information (OS, machine name, app version)
• Custom metadata (displayed as structured key-value pairs)
• Timestamps (client-reported and server-received)
• Comments (team members can add notes)

Projects

Each project has:

• A unique name, color, and icon
• One or more API Keys
• Statistics (total logs, logs today, error count)
• Platform tag (web, mobile, desktop, server)

API Key Management

Under each project you can:

• Generate new API Keys (with environment: production, staging, development)
• Set optional expiration dates
• View usage statistics per key
• Revoke keys that are no longer needed

Export

Export your logs in multiple formats:

• JSON
• CSV
• PDF

Live Stream

The Live Stream page shows log entries in real time as your applications send them. It uses a WebSocket connection, so entries appear instantly without refreshing.

Accessing the Stream

Navigate to Live Stream in the sidebar. The page opens with a live connection to the server.

Stream Interface

• Live indicator — A pulsing dot in the header shows the connection status (red = streaming, amber = paused, gray = disconnected)
• Connection badge — Shows whether the WebSocket is connected
• Entry counter — Displays how many entries are currently visible

Filtering

All filtering happens client-side for instant response:

• Project filter — Dropdown to show logs from a single project
• Severity chips — Toggle Debug, Info, Warning, Error, and Critical on or off
• Search — Filter by method name or message text

Stream Controls

Control	Description
Pause / Resume	Pauses the stream. Incoming entries are buffered and flushed when you resume.
Clear	Removes all entries from the display and resets the error counter.
Export	Downloads the currently displayed entries as a TSV file.

Log Details

Click any entry row to expand it. The detail panel loads the full log from the server, including:

• Complete message text
• Custom metadata (as key-value tags)
• Exception details and stack trace (for error/critical entries)
• Quick actions: View Full Log (opens in the Log Viewer) and Copy JSON

Limits

• The stream keeps up to 500 entries in the browser. Older entries are automatically removed as new ones arrive (FIFO).
• Log messages in the stream are truncated to 200 characters. Click an entry to see the full text.

REST API Reference

If you do not use the NuGet SDK (e.g., you use a different programming language), you can call the API directly.

Base URL: https://logger.kyototech.co.jp/api/v1

Authentication

For log submission, include your API Key in the header:

X-Api-Key: ktlog_production_your_key_here

Submit a Single Log

POST /api/v1/logs

Headers:

Content-Type: application/json
X-Api-Key: ktlog_production_your_key_here

Body:

{
  "logType": 1,
  "logTypeDescription": "ErrorLog",
  "clientTimestamp": "2026-01-27T10:30:00Z",
  "message": "Database connection timeout",
  "methodName": "MyApp.Services.DbService.Connect",
  "exception": "System.TimeoutException: Connection timed out",
  "stackTrace": "at MyApp.Services.DbService.Connect() in ...",
  "metadata": {
    "server": "db-primary",
    "retryCount": 3
  },
  "deviceInfo": {
    "platform": "Linux",
    "osVersion": "Ubuntu 22.04",
    "machineName": "web-server-01",
    "appVersion": "2.1.0"
  }
}

Response (201):

{
  "success": true,
  "logId": "a1b2c3d4-...",
  "remainingLogsToday": 2847
}

Submit a Batch of Logs

POST /api/v1/logs/batch

Body:

{
  "batchId": "batch-2026-01-27-001",
  "deviceInfo": {
    "platform": "Windows",
    "appVersion": "3.0.0"
  },
  "logs": [
    {
      "logType": 1,
      "logTypeDescription": "ErrorLog",
      "clientTimestamp": "2026-01-27T10:30:00Z",
      "message": "Error processing order"
    },
    {
      "logType": 5,
      "logTypeDescription": "WarningLog",
      "clientTimestamp": "2026-01-27T10:30:01Z",
      "message": "Slow query detected"
    }
  ]
}

Response (201):

{
  "success": true,
  "logsReceived": 2,
  "logsStored": 2,
  "batchId": "batch-2026-01-27-001",
  "logIds": ["a1b2c3d4-...", "e5f6g7h8-..."],
  "remainingLogsToday": 2845
}

Log Field Reference

Field	Type	Required	Description
logType	int	Yes	Numeric log type ID
logTypeDescription	string	Yes	Human-readable type name (max 64 chars)
clientTimestamp	datetime	Yes	When the log occurred (ISO 8601)
message	string	Yes	Log message content (max 65,536 chars)
methodName	string	No	Method/function name (max 256 chars)
exception	string	No	Exception message
stackTrace	string	No	Exception stack trace
innerException	string	No	Inner exception details
metadata	object	No	Custom key-value pairs
deviceInfo	object	No	Device/environment info
batchId	string	No	Identifier for grouping (max 64 chars)

HTTP Status Codes

Code	Meaning
201	Log(s) successfully stored
400	Invalid request body or missing required fields
401	Invalid or missing API Key
429	Daily log limit reached
500	Server error

Best Practices

Initialization

• Call Initialize() once at application startup, before any logging
• Store your API Key securely (environment variables, user secrets, Azure Key Vault, etc.)
• Never commit API Keys or License Keys to source control
• Use InitializeAsync() in async contexts (ASP.NET Core, MAUI)

Choosing Log Types

• Only enable remote upload for log types you need (RemoteLogTypes option)
• At minimum, use ErrorLog and CrashLog for production monitoring
• Add PerformanceLog for performance-sensitive applications
• Use SecurityLog and AuthLog for applications handling sensitive data

Uploading

• Logs are stored locally first and uploaded when you call UploadLogsAsync()
• Set up a periodic upload (e.g., every 5 minutes) using a background service or timer
• Call UploadBackupFilesAsync() to retry previously failed uploads
• Call RemoveAllOldLogFilesAsync() periodically to clean up old local files

Metadata

• Use metadata for structured context (user IDs, request paths, order numbers, etc.)
• Keep metadata values concise — avoid large objects or binary data
• Use consistent key names across your application for easier searching

Security

• Use separate API Keys for production and staging environments
• Set expiration dates on API Keys and rotate them periodically
• Use HTTPS only (the server URL must start with https://)
• Do not log sensitive data (passwords, credit card numbers, personal IDs) in messages or metadata

Troubleshooting

Common Issues

Issue	Solution
Initialize() returns Success = false	Check that licenseKey, apiKey, and serverUrl are all provided and correct
Upload fails with 401	Your API Key is invalid, expired, or revoked. Generate a new one on the dashboard
Upload fails with 429	You have reached your daily log limit. Upgrade your plan or wait until the next day (resets at UTC midnight)
Upload fails with timeout	Increase TimeoutSeconds in options or check your network connectivity
No logs on dashboard	Ensure RemoteLogTypes includes the log types you are using. If set to null, all types are uploaded
License validation failed	Your License Key may not match your active subscription. Check your subscription status

Checking Your Setup

// Check initialization
var result = LogService.Initialize(licenseKey, apiKey, serverUrl);
Console.WriteLine($"Success: {result.Success}");
Console.WriteLine($"Error: {result.ErrorMessage}");

// Check license
var info = LogService.Instance.GetLicenseInfo();
Console.WriteLine($"License Type: {info.LicenseType}");
Console.WriteLine($"Valid: {info.IsValid}");
Console.WriteLine($"Max Logs/Day: {info.MaxLogsPerDay}");

// Check hardware ID (for hardware-bound licenses)
Console.WriteLine($"Hardware ID: {LogService.Instance.GetHardwareId()}");

// Test upload
var upload = await LogService.Instance.UploadLogsAsync();
Console.WriteLine($"Upload: {upload.IsSuccess} - {upload.Message}");

Support & Contact

Resources

• Dashboard: logger.kyototech.co.jp
• NuGet Package: nuget.org/packages/KyotoTechLogger
• Pricing: kyototech.jp/pricing
• Support Contact: kyototech.jp/#contact

Reporting Issues

When contacting support, please include:

1. Your License Key (first 8 characters only)
2. Your application type (.NET MAUI, ASP.NET Core, Console, etc.)
3. The InitializationResult output or error message
4. Your Hardware ID if relevant: LogService.Instance.GetHardwareId()

Copyright 2024-2026 KyotoTech LLC. All Rights Reserved.
This documentation is for KyotoTech Logger version 1.2.2.
